HORIZON 3500

OUR INTERMEDIATE MODEL

HIGH CAPACITY, LOW WEIGHT

The Horizon 3500 is the intermediate model but still offers high spraying outputs with exceptional build quality and reliability.

The 3500 models benefit from having our unique Panoramic cab. Designed in house and built in Germany, this cab features the latest Category 4 filtration.

Comfort, visibility, build quality and ergonomics are to the highest standard and the impressive low noise levels take operator wellbeing to the next stage.

DESCRIPTION

VIDEO GALLERY

DOWNLOAD BROCHURE

SPECIFICATION

VEHICLE

ENGINE: Tier 5 Final watercooled engine with Add Blue 140kw/188hp

TRANSMISSION: Fully hydrostatic 4-wheel drive with 4-speed transmission for high field torque and high road speed. Poclain wheel motors

BRAKING: Primary hydrostatic with dynamic braking with foot pedal and boosted braking on the joystick

HYDRAULIC OIL TANK: 200 litres (High Grade HV 46)

STEERING: Selectable 4-wheel steer on foot pedal with auto alignment

CHASSIS: Welded hollow steel section

AXELS: 68” – 80”, 72” – 84” (Mechanical) | Or 68” – 84” Full Hydraulic Sliding

SUSPENSION: Self levelling hydro-pneumatic | Optional ‘Dual Ride’ facility for softer ride in the field

CAB: High visibility, luxury cab with climate control, high back air seat, CD player, electric mirrors, carbon filtration

IN-CAB CONTROLS: Steering column adjustable for height and angle. Joystick control for forward/reverse, main on/off and control of boom sections and height, and selectable 4-wheel steer. In cab control of clean water rinse tank (with standard pump only)

SPRAYING

SPRAY TANK SIZE: 3500 litres

WASH TANK: 300 litres (external) mounted over rear axle

PUMP: Standard 6 cylinder 280l/min | Optional cylinder 400l/min

FILTRATION: Main suction filter with flushing pressure filter and nozzle filters

BOOM SIZE: Standard 24m 2 stage gullwing | Optional VG Boom

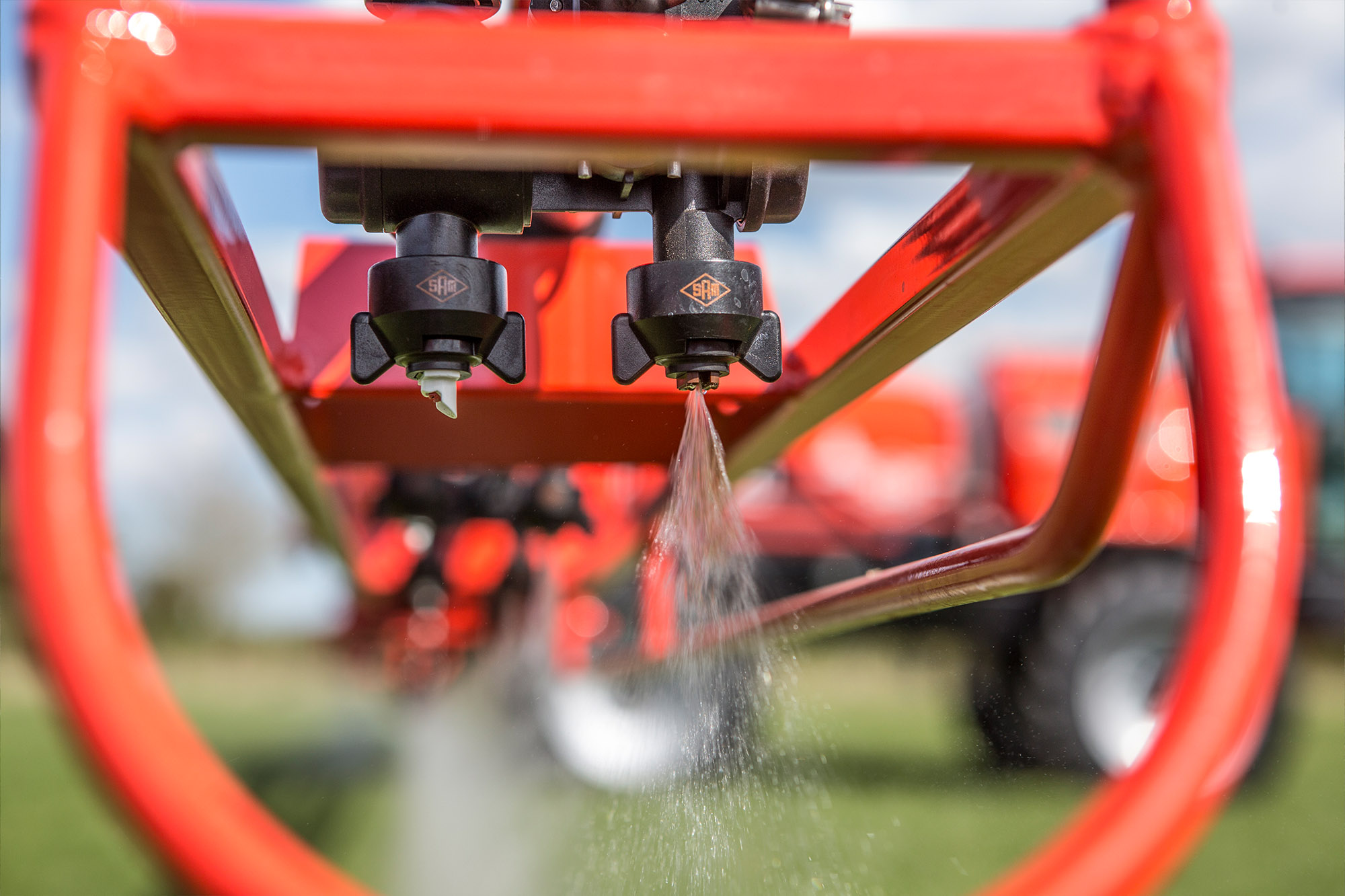

SPRAYLINE: Standard stainless steel 0.75in with Prime and Purge boom re-circulation. Triplet nozzle bodies c/w 3 sets of spray tips (customer choice) | Optional Quad, Quin or Twin Lines (Hypro Duo-React)

SECTION CONTROLS: Standard 7 sections

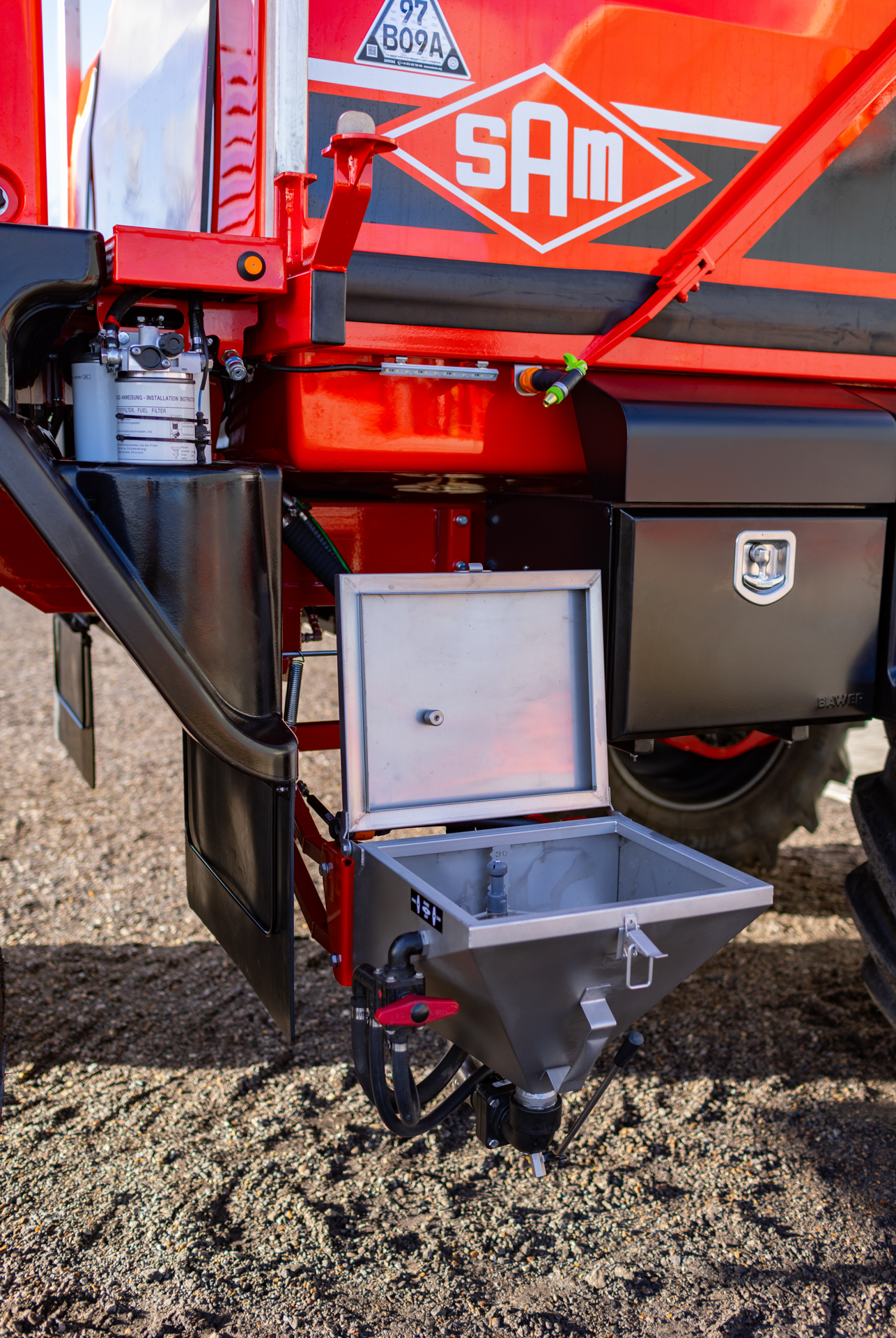

PLUMBING: Twin rotary valves to control self-filling, spray, wash and pump out. Stainless steel 25 litre chemical induction hopper

MIN SPRAY HEIGHT: 0.6m

MAX SPRAY HEIGHT: 2.4m

APPLICATION CONTROL: All GPS makes can be fitted, including Boom Levelling and PWM Systems

DIMENSIONS & WEIGHTS

WHEELBASE: 3.2m

TURNING CIRCLE: 7m

GROUND CLEARANCE: 950mm

TYRES: Standard 14.9/30 | Optional 14.9/34 | Optional 16.9/30

FUEL TANK: 270 litres

MAX ROAD SPEED: 40 km/h

UNLADEN WEIGHT: 8.1 tonnes

OVERALL WIDTH: 2.9m

OVERALL LENGTH: 8.05m

OVERALL HEIGHT: 3.6m

DESCRIPTION

The Horizon 3500 has replaced the renowned Vision 3500 and carries on its ability to offer a high capacity machine at a relatively low overall weight. This allows it to tread lightly in damper conditions whilst still giving the performance required when spraying demands are at their highest.

Power is from the latest Deutz Tier 4 Final, 6-cylinder turbocharged engine driving through Poclain Boosted Braking wheel motors. Brakes on both axles for improved stopping capabilities when travelling at higher road speeds.

All models benefit from a ‘load sensed’ hydraulic system which allows all operations to be carried out at low engine revs, reducing fuel usage and enabling swifter control of booms when spraying. It also allows a fast fill pump to be used in conjunction with the spray pump to give quicker filling whilst still being able to draw clean water through the induction hopper. Boom folding and unfolding is smooth and quick and enables booms to be folded in unison even on sloping ground.

‘Dual-ride’ suspension is a further development of our hydro-pneumatic system which offers the user a firm or soft ride. The firm setting is primarily for on road use to give a controlled feel at speed and softer when spraying in rough field conditions.

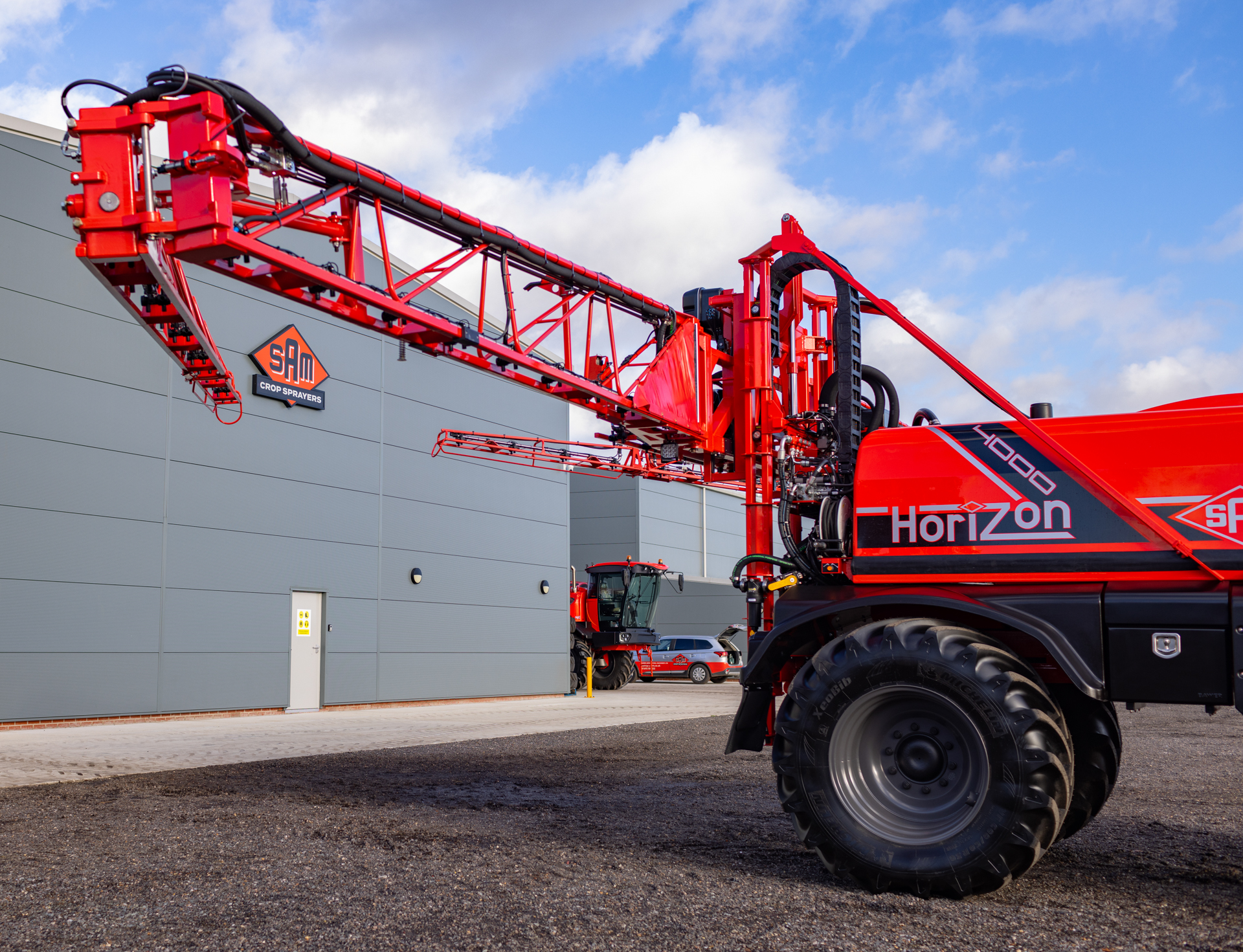

Booms up to 24m are available in either a rigid contour or our unique VG steel boom for boom levelling systems. Sands manufactured steel 3 fold boom sprays at 12, 24 and the wider width and can be fitted with the latest Hypro ‘DuoReact’ nozzle bodies for use with fertiliser dribble bars.
